D1-1 Flap Demonstrator

D1-1

Advanced Manufacturing

Highly integrated centre wing box



The project has delivered a 3.2-meter-span OWB demonstrator that embodies the next generation of lightweight, cost-efficient wing design. The high aspect ratio (HAR) structure incorporates an innovative hybrid architecture, combining metallic closure ribs, thermoplastic internal ribs, a thermoplastic stiffened lower panel, fast-curing prepreg spars, and an infusion-molded skin panel.

Demonstrator Gallery

Manufacturing & Assembly

Explore the manufacturing processes, tooling, and structural components of the demonstrator.

01

Demonstrator Manufacturing

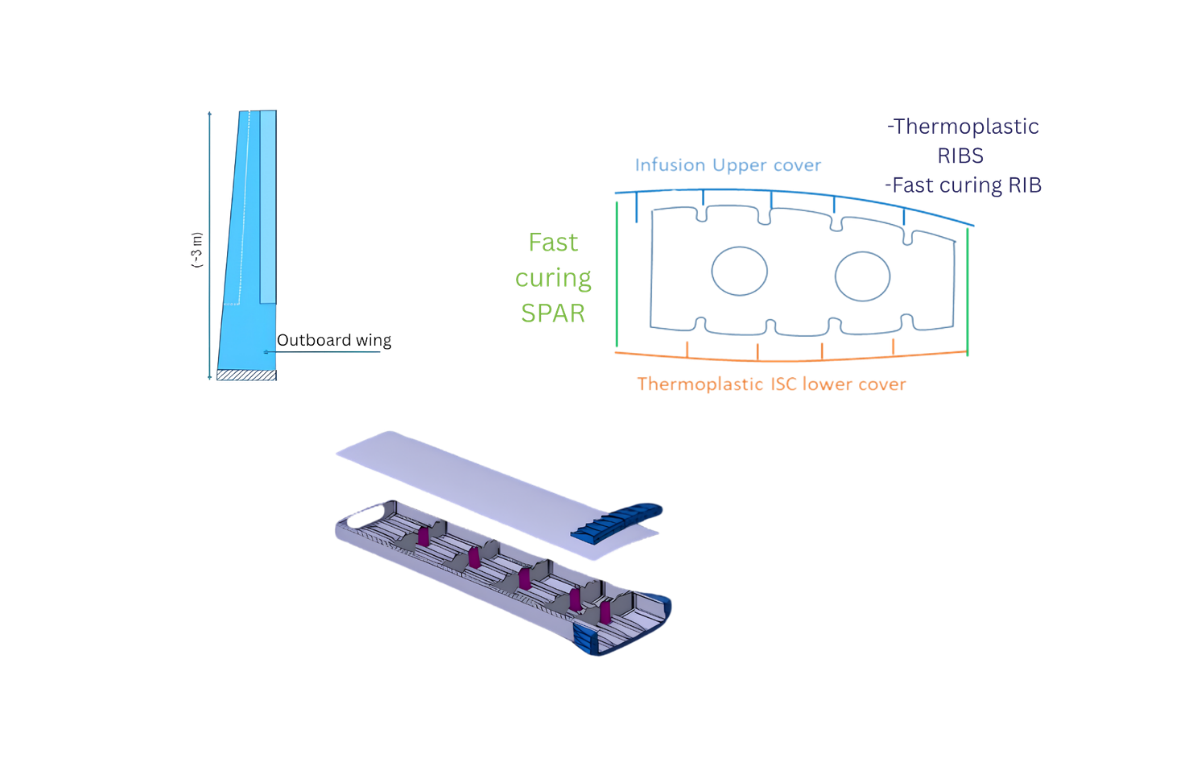

Mold tool

02

The design

Lower Cover demonstrator

03

TECHNICAL PROGRESS (LDO)

Lower Cover demonstrator part delivered to Leonardo

Assembly jig

04

TECHNICAL PROGRESS (LDO)

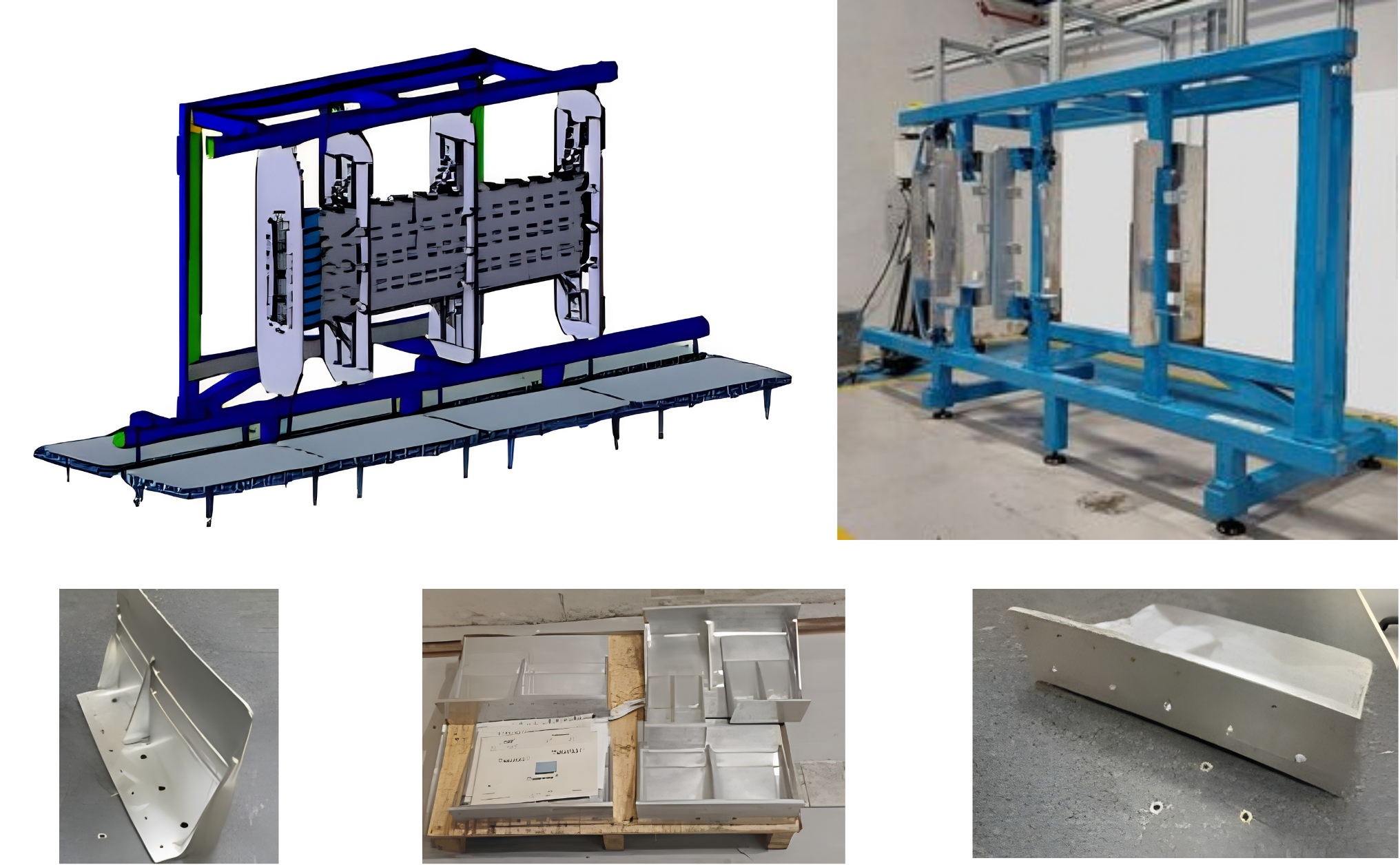

  • Assembly jig for OWB
  • Metallic fitting for structural test
Spar tool

05

Manufacturing



Metallic fitting

06

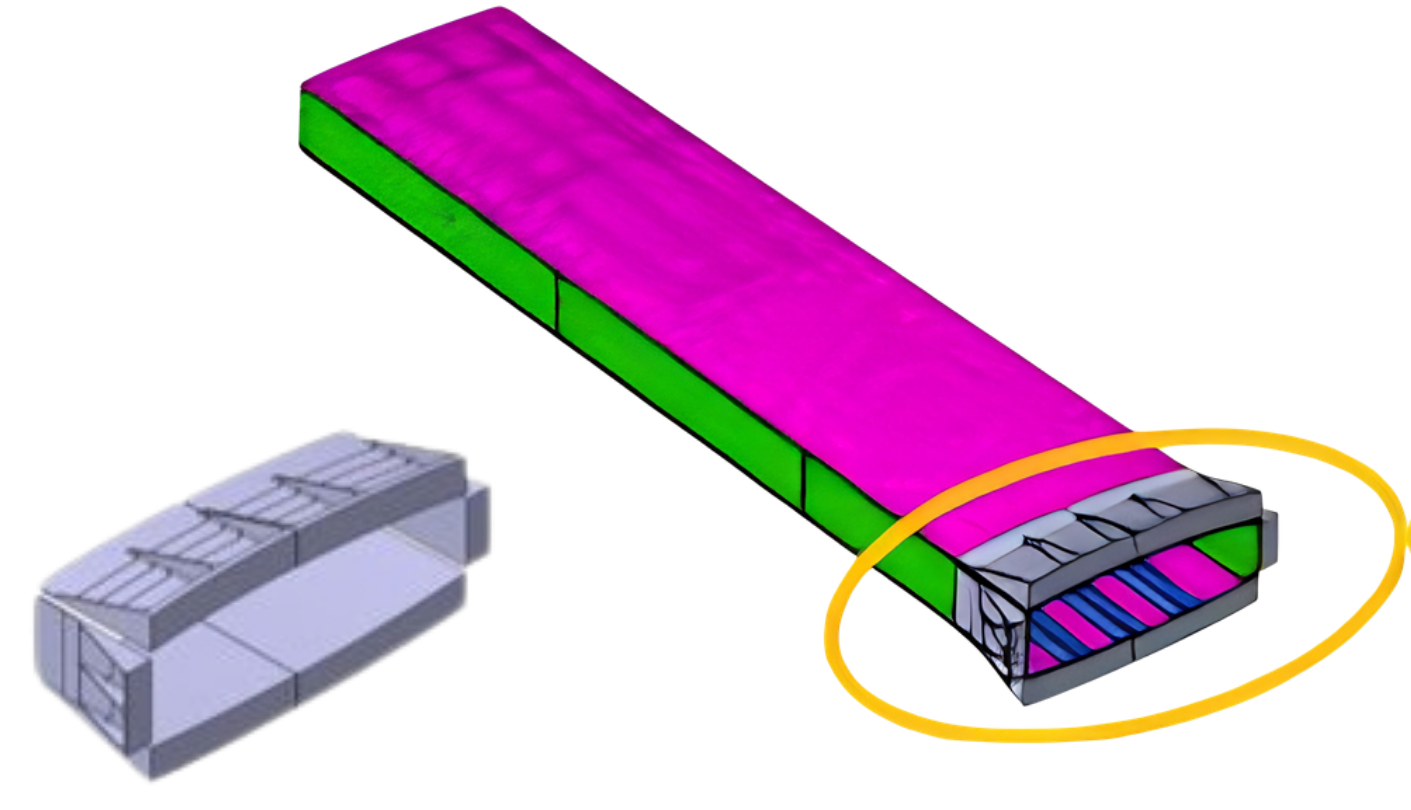

Metallic Fitting

Metallic fitting for structural test.

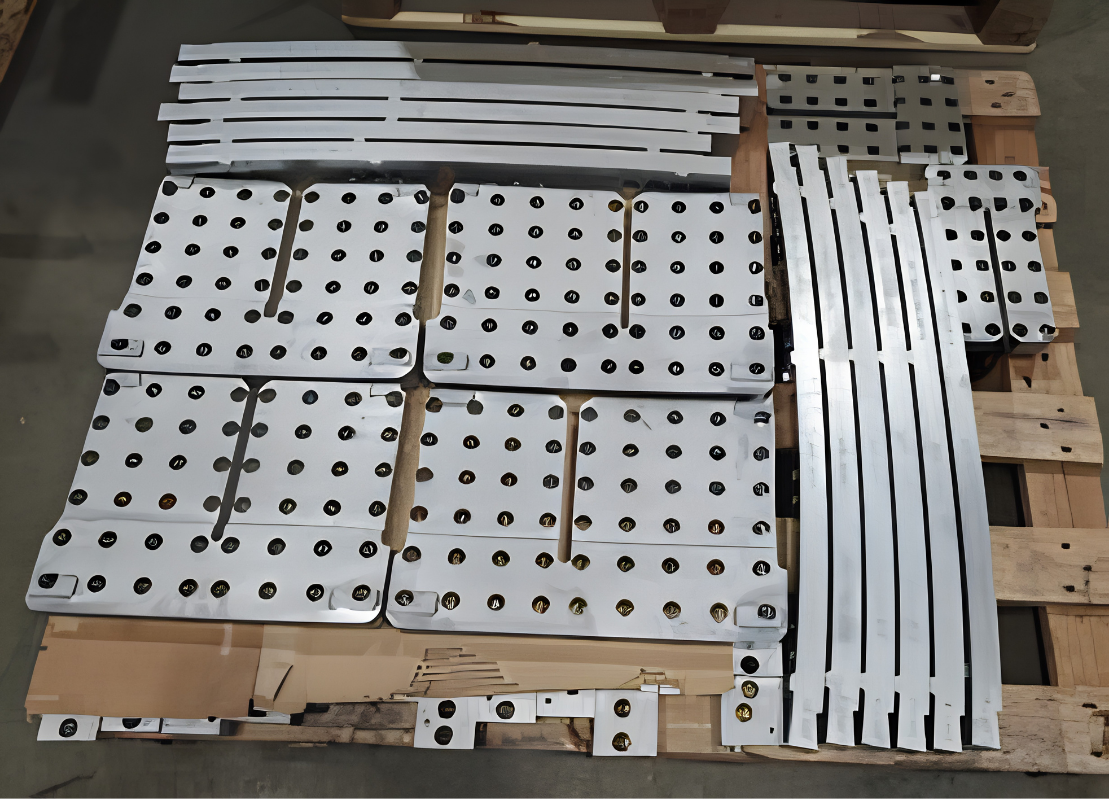

Drilling template

07

Manufacturing

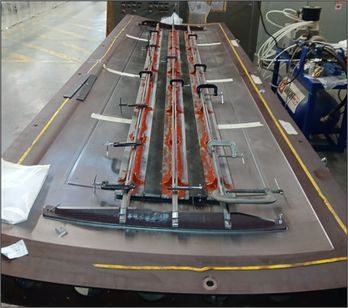

of upper mold tool,stringer mandrels & caul plates for the OWB panel

Spar tool

08

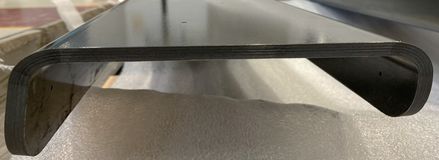

Spar Tool

Manufacturing tooling for the spar demonstrator.

Drilling template

09

Drilling template
