D1-12
TECHNICAL PROGRESS
Wing Component Design

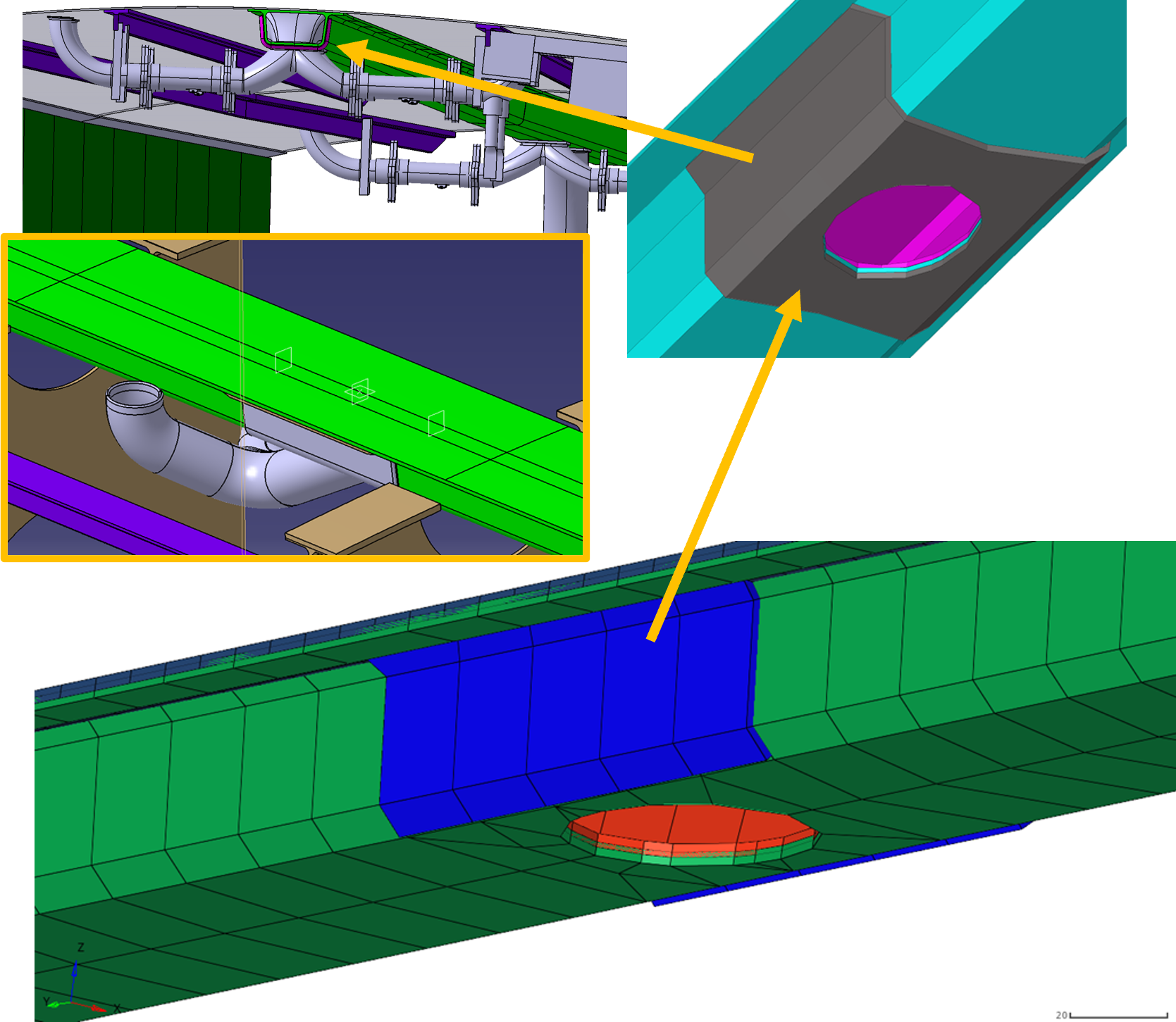

HERWINGT developed a multifunctional composite fuel vent system integrated within the wing upper skin, combining structural reinforcement and fuel venting capabilities in a single solution. The demonstrator validated innovative design concepts, manufacturability, and performance through dedicated pressure testing, supporting the next generation of lightweight, highly integrated aircraft structures.
Objectives achieved

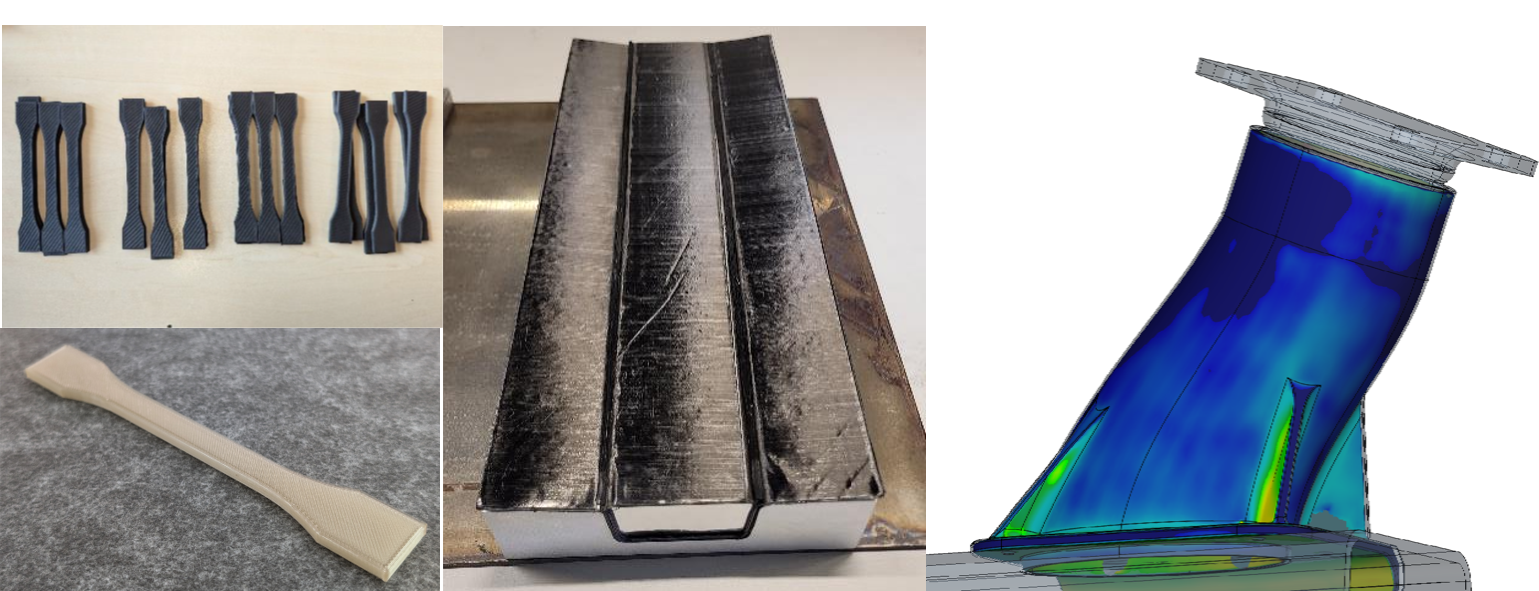

- Mechanical testing of material samples under a kerosene environment has finished for PPSU and PEEK.
- Manufacturing of stringers with tooling is ongoing, and pre-testing with internal overpressure was successful.
- Additive manufacturing of connector elements for demonstrators is ongoing.
- Testing of the first and second Demonstrator is finished.
Demonstrator Gallery
Manufacturing & Assembly
Explore the manufacturing processes, tooling, and structural components of the demonstrator.
