D1-2 Pylon-to-pylon Centre Wing Box

D1-2 Advanced Centre Wing Box Demonstrator

Integration and Manufacturing challenges



HERWINGT is advancing hybrid-electric aircraft integration through a semi-pylon-to-pylon multi-spar centre wing box demonstrator. Manufactured using one-shot Liquid Resin Infusion (LRI), the highly integrated structure consolidates skins, spars, stringers, and stiffeners into a HAR-configured design. The demonstrator will validate multi-spar architectures, assess manufacturing constraints, and support the structural maturation of next-generation aircraft.

Demonstrator Gallery

Manufacturing & Assembly

Explore the manufacturing processes, tooling, and structural components of the demonstrator.

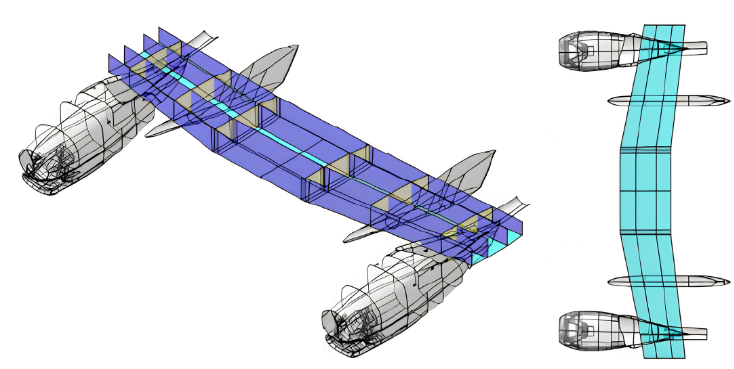

Pylon to pylon

01

Pylon-to-Pylon Demonstrator

Validation of the infusion process for a highly integrated structure

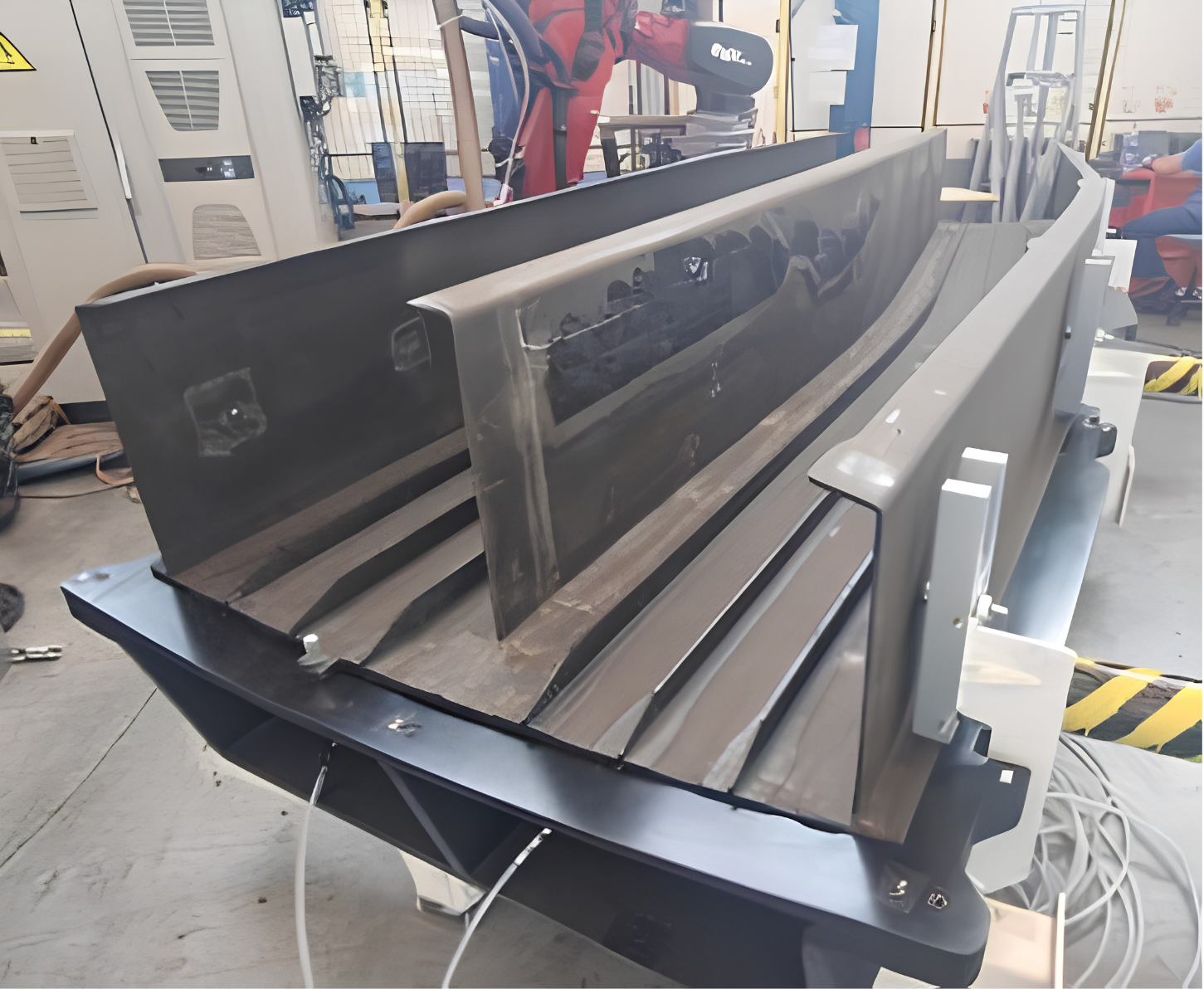

Wing box Assembly

02

Upper and lower panel manufactured

Panels installed in assembly jigs successfully, Upper and lower panel dimensional

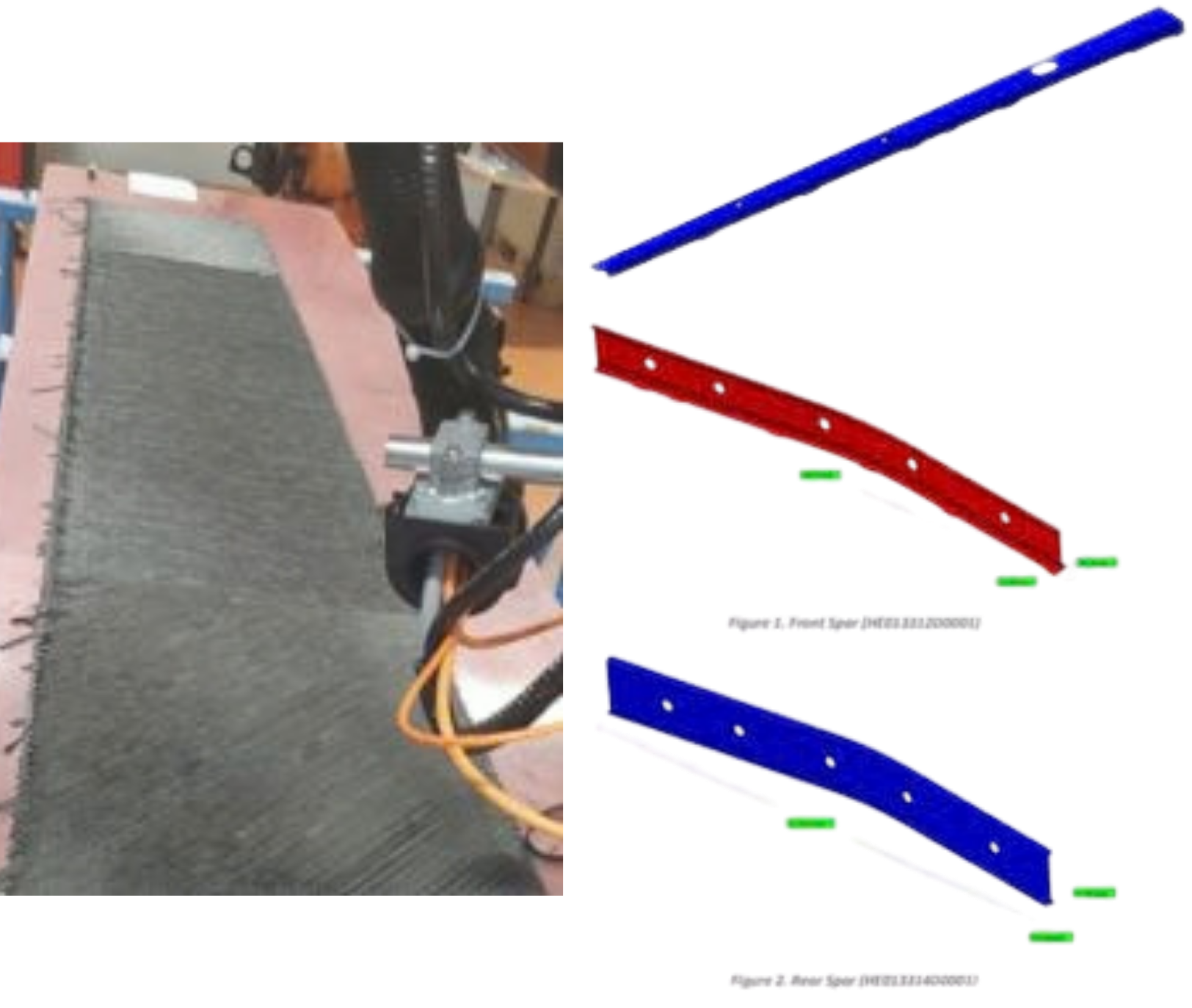

Panels

03

Lower skin repaired and NDT tested.

Straight spars technology maturation at FIDAMC is in progress, lamination already started. Kinked spars technology maturation, defined with MTorres.

TLR3

04

TLR3

Steering and high-thickness de-risking for LRI technology. Process and tooling defined for a highly integrated structure

TLR4

05

TLR4

Validation of the infusion process for a highly integrated structure
